Week 9 (27/08/18 - 31/08/18)

ISB Videos

This week we ended our ISB's Machine Learning course with the last two lectures which were on Text Analysis and Mining graphs. The topics covered were as follows:

Word2vec

Word2vec is a two-layer neural net that processes text. Its input is a text corpus and its output is a set of vectors: feature vectors for words in that corpus. While Word2vec is not a deep neural network, it turns text into a numerical form that deep nets can understand.

The purpose and usefulness of Word2vec are to group the vectors of similar words together in vector space. That is, it detects similarities mathematically. Word2vec creates vectors that are distributed numerical representations of word features, features such as the context of individual words. It does so without human intervention.

There are two types of Word2Vec, Skip-gram and Continuous Bag of Words (CBOW). I will briefly describe how these two methods work in the following paragraphs.

Skip-gram

Words are read into the vector one at a time and scanned back and forth within a certain range. Those ranges are n-grams, and an n-gram is a contiguous sequence of n items from a given linguistic sequence; it is the nth version of unigram, bigram, trigram, four-gram or five-gram. A skip-gram simply drops items from the n-gram.

The graph below visualizes the network structure.

CBOW

Continuous Bag of Words (CBOW) is very similar to skip-gram, except that it swaps the input and output. The idea is that given a context, we want to know which word is most likely to appear in it.

The biggest difference between Skip-gram and CBOW is that the way the word vectors are generated. For CBOW, all the examples with the target word as a target are fed into the networks and taking the average of the extracted hidden layer. For example, assume we only have two sentences, “He is a nice guy” and “She is a wise queen”. To compute the word representation for the word “a”, we need to feed in these two examples, “He is a nice guy”, and “She is wise queen” into the Neural Network and take the average of the value in the hidden layer. Skip-gram only feeds in the one and only one target word one-hot vector as input.

It is claimed that Skip-gram tends to do better in rare words. Nevertheless, the performance of Skip-gram and CBOW are generally similar.

Mining Graphs

The Web as a Directed Graph

Viewing social and economic networks in terms of their graph structures provides significant insights, and the same is true for information networks such as the Web. When we view the Web as a graph, it allows us to better understand the logical relationships expressed by its links; to break its structure into smaller, cohesive units; and to identify important pages as a step in organizing the results of Web searches.

Early Search Engines and Term Spam

Techniques for fooling search engines into believing your page is about something it is not are called term spam. The ability of term spammers to operate so easily rendered early search engines almost useless. To combat term spam, Google introduced two innovations:

1. PageRank was used to simulate where Web surfers, starting at a random page, would tend to congregate if they followed randomly chosen outlinks from the page at which they were currently located, and this process was allowed to iterate many times. Pages that would have a large number of surfers were considered more “important” than pages that would rarely be visited. Google prefers important pages to unimportant pages when deciding which pages to show first in response to a search query.

2. The content of a page was judged not only by the terms appearing on that page but by the terms used in or near the links to that page. Note that while it is easy for a spammer to add false terms to a page they control, they cannot as easily get false terms added to the pages that link to their own page, if they do not control those pages.

Spectral Clustering

In multivariate statistics and the clustering of data, spectral clustering techniques make use of the spectrum (eigenvalues) of the similarity matrix of the data to perform dimensionality reduction before clustering in fewer dimensions. The similarity matrix is provided as an input and consists of a quantitative assessment of the relative similarity of each pair of points in the dataset.

In application to image segmentation, spectral clustering is known as segmentation-based object categorization.

Satnam Sir's session on Cyber Security

Sir discussed the following topics in the session:

Data Exfiltration Detection

Exfiltration is a rather new word in the English language. In fact, it wasn’t used prevalently until recently.

By definition, data exfiltration is the unauthorized copying, transfer, or retrieval of data from a computer or server. It is a malicious activity performed through various different techniques, typically by cybercriminals over the internet or other networks.

More specifically, data exfiltration is a security breach that occurs when one’s data is illegally copied. Normally, it’s the result of a targeted attack where the malicious actor’s primary intent is to find and copy specific data from a specific machine. The hacker gains access to the target machine through a remote application or by directly installing a portable media device. These breaches often occur on systems that still use the hardware/software vendor’s default password or an easy-to-guess password.

Splunk for Detecting and Stopping Data Exfiltration

Then he showed us how he used Splunk to detect unusual activity in the Weblogs.

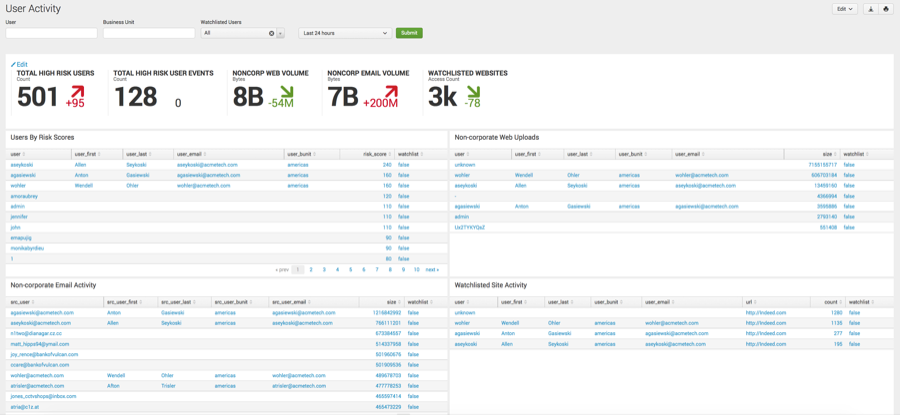

The User Activity dashboard would display panels representing user activities such as potential data exfiltration. A spike in the volume or a high volume of key indicators such as Non-corporate Web Uploads and Non-corporate Email Activity can indicate suspicious data transfer. The dashboard indicates a high volume of suspicious activity involving data being uploaded to non-corporate domains, as well as suspiciously large email messages sent to addresses outside the organization.

The User Activity dashboard was used as the starting point to detect suspicious data exfiltration behavior. The Email Activity dashboard exposed large data transfers to known and unknown domains. Using the dashboards and searches provided with Splunk Enterprise Security, the security analyst can check for common data exfiltration behaviors and set up monitoring of potentially compromised machines and take necessary remedial action.

Anamoly Detection algorithms

Anomaly detection is a technique used to identify unusual patterns that do not conform to expected behavior, called outliers.

Density-Based Anomaly Detection

Density-based anomaly detection is based on the k-nearest neighbor's algorithm.

Assumption: Normal data points occur around a dense neighborhood and abnormalities are far away.

The nearest set of data points are evaluated using a score, which could be Euclidean distance or a similar measure dependent on the type of the data (categorical or numerical). They could be broadly classified into two algorithms:

1. K-nearest neighbor: k-NN is a simple, non-parametric lazy learning technique used to classify data based on similarities in distance metrics such as Euclidean, Manhattan, Minkowski, or Hamming distance.
2. Relative density of data: This is better known as local outlier factor (LOF). This concept is based on a distance metric called reachability distance.

Clustering-Based Anomaly Detection

Clustering is one of the most popular concepts in the domain of unsupervised learning.

Assumption: Data points that are similar tend to belong to similar groups or clusters, as determined by their distance from local centroids.

K-means is a widely used clustering algorithm. It creates 'k' similar clusters of data points. Data instances that fall outside of these groups could potentially be marked as anomalies.

Support Vector Machine-Based Anomaly Detection

A support vector machine is another effective technique for detecting anomalies. An SVM is typically associated with supervised learning, but there are extensions (OneClassCVM, for instance) that can be used to identify anomalies as an unsupervised problem (in which training data are not labeled). The algorithm learns a soft boundary in order to cluster the normal data instances using the training set, and then, using the testing instance, it tunes itself to identify the abnormalities that fall outside the learned region.

Depending on the use case, the output of an anomaly detector could be numeric scalar values for filtering on domain-specific thresholds or textual labels (such as binary/multi labels).

He then asked us to work on a Kaggle dataset of Credit Card Fraud Detection problem. He asked us to solve it as an anomaly detection problem rather than a classification problem.
